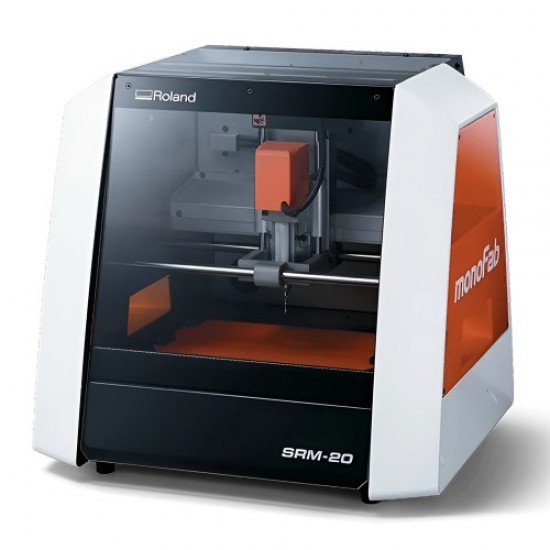

Roland monoFab SRM-20 Desktop Milling Machine
Your shopping cart is empty!
Product Description
ROLAND MONOFAB SRM-20 DESKTOP MILLING MACHINE
Cuttable Material
Modelling Wax, Chemical Wood, Foam, Acrylic, Poly acetate, ABS, PC board
X, Y, and Z Operation Strokes
203.2 (X) x 152.4 (Y) x 60.5 (Z) mm
Workpiece table size
232.2 (X) x 156.6 (Y) mm
Distance From Collet Tip to Table
Max, 130.75mm (5.15 in)
Loadable Workpiece Weight
2 kg (4.4 lb)
X-, Y-, and Z-Axis Drive System
Stepping motor
Operating Speed
6 - 1800mm/min
0.24 - 70.87inch/min
Software Resolution
0.01 mm/step (RML-1), 0.001mm/step (NC code)
0.000039 inches/step (RML-1), 0.000039 inches/step (NC code)
Mechanical Resolution
0.000998594 mm/step
0.0000393 inches/step
Dimensions
189.4 (W) × 86.6 (D) × 62.2 (H) in. (4,812 × 2,200 × 1,580 mm)
Spindle Motor
DC motor Type 380
Environment
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity: 40 to 80 %
Spindle Rotation Speed
Adjustable 3000 - 7000 rpm
Cutting Tool Chuck
Collet method
Interface
USB
Control Command Sets
RML-1, NC code
Power Requirements
Machine: DC24V, 2.5A,
Dedicated AC adapter: AC 100-240 V ±10%, 50/60 Hz
Power Consumption
Approx. 50 W
Operating Noise
During operation: 65 dB (A) or less (when not cutting),
During standby: 45 dB (A) or less
External Dimensions
451.0 (W) x 426.6 (D) x 426.2 (H) mm
Weight
19.6 kg (43.2 lb)
Installation Environment
Temperature of 5 to 40°C (41 to 104 °F)
35 to 80% relative humidity (no condensation)
Included Items
USB cable, AC adapter, Power cable, Cutting tool, Collet, Set screw,
Spanners (7,10mm), Hexagonal wrench (size 2,3 mm), Positioning pins,
Double-sided tape, Start-up page guidance card
