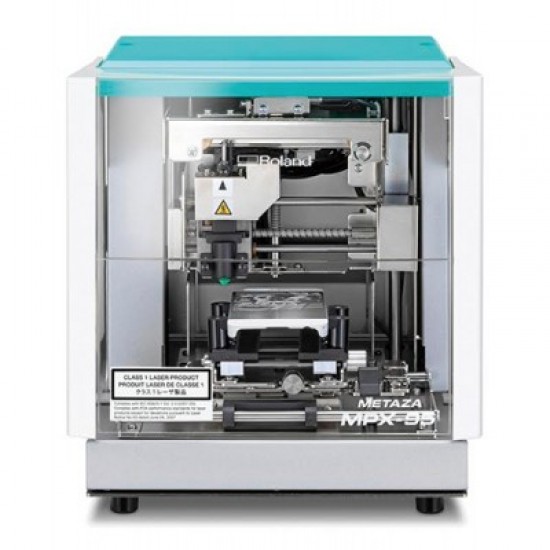

Roland Metaza MPX-95 Impact Printer with DPM Kit
$4,798.00
Viewed 62 times
Product Description
MPX-95 Impact Printer with DPM Kit
An easier way to mark tools and instruments
-Imprint images, text, and barcodes onto medical and industrial equipment
-Runs quietly and safely in any lab, hospital or office
-Precise, low-cost and easy-to-operate solution
-Features a selection of vises for direct part marking
-Removable base enables imprinting onto large items
-Includes METAZA Studio software
| Model | MPX-95 | |
|---|---|---|
| Imprintable material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc. (Vickers hardness [HV] of the imprint surface must be 200 or less.) | |
| Loadable material size | Using a base table + base plate: | Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H) (100 mm (W) X 200 mm (L) X 40 mm (H)) or 7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H) (200 mm (W) X 100 mm (L) X 40 mm (H)) |
| Using a base plate only: | Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H) (100 mm (W) X 200 mm (L) X 70 mm (H)) or 7.9 in. X 3.9 in. X 2.8 in. (200 mm (W) X 100 mm (L) X 70 mm (H)) *The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area. | |
| Imprint area | Maximum imprintable area | 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H) 80 mm (W) X 80 mm (D) X 70 mm (H) |
| Recommended imprint area | 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H) 50 mm (W) . 50 mm (D) . 70 mm (H) | |
| Resolution | High resolution | 529 dpi |
| Photo | 353 dpi | |
| Text | 265 dpi | |
| Vector | 1058 dpi | |
| Imprint direction | Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver) | |
| Imprint speed (Default) | Photo | 2.0 in./sec (50 mm/sec) |
| High resolution/Text | 1.2 in./sec (33 mm/sec) | |
| Vector | 0.94 in./sec (24 mm/sec) | |
| Interface | USB | |
| Power requirements | Dedicated AC adapter | AC 100 to 240 V ±10%, 50/60 Hz |
| Main unit | DC 19 V, 1.2 A | |
| Power consumption | Approx. 21 W | |
| Operating noise | 70 dB (A) or less | |
| Operating temperature | 50 to 86°F (10 to 30°C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| External dimensions | 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H) 286 mm (W) x 383 mm (D) x 308 mm (H) | |
