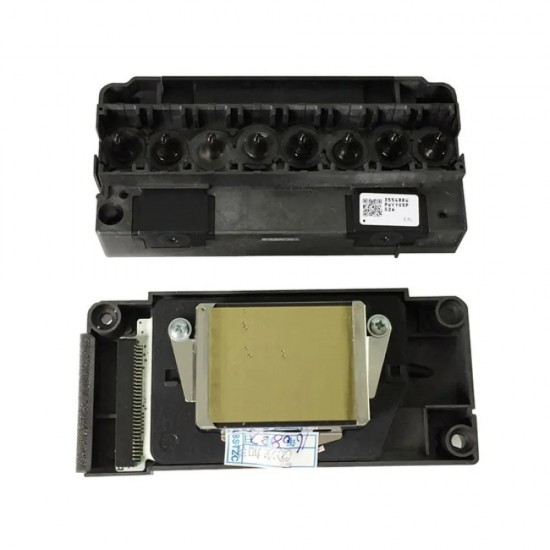

Epson R1900 / R2000 / R2100 / R2880/Printhead DX5-F186000

Epson R1900 / R2000 / R2100 / R2880/Printhead (DX5)-F186000

To be used with: The Epson dx5 print head is used by different printer series: Epson Stylus Photo R1900, Epson Stylus Photo R2880, Epson Stylus Photo R2000, Epson Stylus Photo R2100

Part number: F186000

Remarks: Original

Description: The Epson DX5 (Epson fifth generation micro-piezo Print Head) has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line. The Epson DX5 is either used in 4-colour or 8-colour printers and has a minimum, variable droplet size of 1,5 pico litre (max. droplet size is 21 pico litre).

Application: It is a new generation print head that allows fast speed, high resolution printing with water-based dye and pigment inks.

Note:

This printhead can be replaced by New Model Epson Printhead (DX5), Item Code: PRH-EPS-010-X.

The new model DX5 f186000 head is compatible with all chinese printer using first-locked, second-locked, unlocked head.
